Troubleshooting Jira errors

Here are some common issues with the Jira integration, and ways to address them.

Unable to setup Jira configuration in DefectDojo due to 404, 401 or 403 errors

Jira Cloud:

  • Consult the Jira Cloud REST API documentation on authentication: https://developer.atlassian.com/cloud/jira/software/basic-auth-for-rest-apis/
  • Verify on the command line that the provided credentials can access the necessary issues in Jira:
curl -D- \
   -u <emailaddress>:<personal_access_token> \
   -X GET \
   -H "Content-Type: application/json" \
   https://<COMPANY>.atlassian.net/rest/api/latest/issue/<JIRA_ISSUE_KEY>/transitions?expand=transitions.fields

For example:

curl -D- \
   -u defectdojo@example.com:ATATT1234567890abcdefghijklmnopqrstuvwxyz \
   -X GET \
   -H "Content-Type: application/json" \
   https://defectdojo.atlassian.net/rest/api/latest/issue/VULNERABILITY-1/transitions?expand=transitions.fields

Jira Data Center or Server:

  • Consult the Jira Data Center REST API documentation on authentication:
    • https://developer.atlassian.com/server/jira/platform/basic-authentication/ (username + password)
    • https://confluence.atlassian.com/enterprise/using-personal-access-tokens-1026032365.html (personal access token)
  • Verify on the command line that the provided credentials can access the necessary issues in Jira:
curl -u username:password -X GET -H "Content-Type: application/json" https://<COMPANY>.atlassian.net/rest/api/latest/issue/<JIRA_ISSUE_KEY>/transitions?expand=transitions.fields

For example:

curl -u defectdojo@example.com:123456 -X GET -H "Content-Type: application/json" https://defectdojo.atlassian.net/rest/api/latest/issue/VULNERABILITY-1/transitions?expand=transitions.fields

When using personal access tokens:

curl -H "Authorization: Bearer <personal_access_token>" https://<COMPANY>.atlassian.net/rest/api/latest/issue/<JIRA_ISSUE_KEY>/transitions?expand=transitions.fields

For example:

curl -H "Authorization: Bearer ATATT1234567890abcdefghijklmnopqrstuvwxyz" https://<COMPANY>.atlassian.net/rest/api/latest/issue/<JIRA_ISSUE_KEY>/transitions?expand=transitions.fields

I can’t find an Epic Name ID for my Space

Certain Spaces in Jira, such as Team-Managed Spaces, do not use Epics and therefore will not have an Epic Name ID. In this case, set Epic Name ID to 0 in DefectDojo.

Findings that I ‘Push To Jira’ do not appear in Jira

Using the ‘Push To Jira’ workflow triggers an asynchronous process, however an Issue should be created in Jira fairly quickly after ‘Push To Jira’ is triggered.

  • Check your DefectDojo notifications to see if the process was successful. If the push failed, you will get an error response from Jira in your notifications.

Common reasons issues are not created:

  • The Default Issue Type you have selected is not usable with the Jira Space
  • Issues in the Space have required attributes that prevent them from being created via DefectDojo (see our guide to Custom Fields)

Error: Product Misconfigured or no permissions in Jira?

This error message can appear when attempting to add a created Jira configuration to a Product. DefectDojo will attempt to validate a connection to Jira, and if that connection fails, it will raise this error message.

  • Check to see if your Jira credentials are allowed to create issues in the given Jira Space you have selected.
  • The “Project Key” field needs to be a valid Jira Space. Jira issues can use many different Keys within a single Space; the easiest way to confirm your Project Key is to look at the URL for that particular Jira Space: generally this will look like https://xyz.atlassian.net/jira/core/projects/JTV/board. In this case JTV is the Space Key.

Changes made to Jira issues are not updating Findings in DefectDojo

Jira Epics aren’t being created

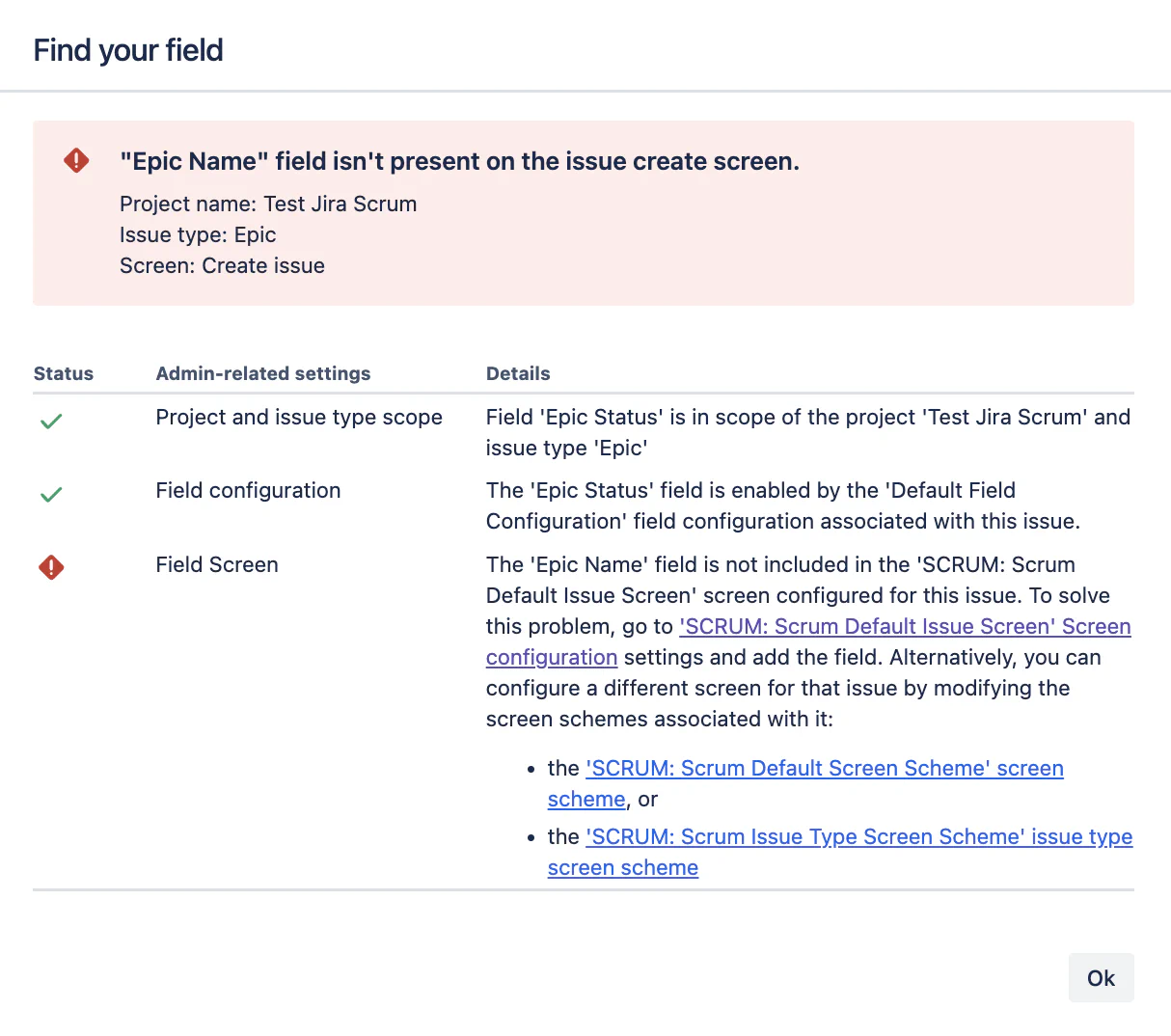

"Field 'customfield_xyz' cannot be set. It is not on the appropriate screen, or unknown."

DefectDojo’s Jira integration needs a customfield value for ‘Epic Name’. However, your Project settings might not actually use ‘Epic Name’ as a field when creating Epics. Atlassian made a change in August 2023 which combined the ‘Epic Name’ and ‘Epic Summary’ fields.

Newer Jira Spaces might not use this field when creating Epics by default, which results in this error message.

To correct this issue, you can add the ‘Epic Name’ field to your Project’s issue creation screen:

  1. Attempt to create an Epic in Jira manually (through Jira UI).
  2. Open the “…” menu
  3. Click ‘Find Your Field’
  4. Type in ‘Epic Name’
  5. Add Epic Name as a field to this particular screen by following Jira’s instructions.


Configuring JIRA Connection Retries and Timeouts

DefectDojo’s JIRA integration includes configurable retry and timeout settings to handle rate limiting and connection issues. These settings are important for maintaining system responsiveness, especially when using Celery workers.

Available Configuration Variables

The following environment variables control JIRA connection behavior:

  • DD_JIRA_MAX_RETRIES (default: 3): Maximum number of retry attempts for recoverable errors. The integration will automatically retry on HTTP 429 (Too Many Requests), HTTP 503 (Service Unavailable), and connection errors. See the JIRA rate limiting documentation for more information.

  • DD_JIRA_CONNECT_TIMEOUT (default: 10 seconds): Connection timeout for establishing a connection to the JIRA server.

  • DD_JIRA_READ_TIMEOUT (default: 30 seconds): Read timeout for waiting for a response from the JIRA server after the connection is established.

Note on Rate Limiting: The jira library has a built-in maximum wait time of 60 seconds for rate limiting retries. If JIRA’s Retry-After header indicates a wait time longer than 60 seconds, the request will fail and not be retried. This is a limitation of the jira library version currently in use.

Why Conservative Values Matter

Important: It is recommended to use conservative (lower) values for these settings. Here’s why:

  1. Celery Task Blocking: JIRA operations in DefectDojo run as asynchronous Celery tasks. When a task is waiting for a retry delay, it blocks that Celery worker from processing other tasks.

  2. Worker Pool Exhaustion: If multiple JIRA operations are retrying with long delays, you can quickly exhaust your Celery worker pool, causing other tasks (not just JIRA-related) to queue up and wait.

  3. System Responsiveness: Long retry delays can make the system appear unresponsive, especially during JIRA outages or rate limiting events.

JIRA Rate limiting is new, so please let us know on Slack or GitHub what works best for you.

Jira and DefectDojo are out of sync

Sometimes Jira is down, or DefectDojo is down, or there was bug in a webhook. In this case, Jira can become out of sync with DefectDojo. If this is the case for lots of issues, manual reconciliation might not be feasible. For this scenario there is the management command ‘jira_status_reconciliation’.

As this command requires access to the backend, it is not available to Cloud users of DefectDojo Pro; instead, please contact our Support team for assistance with this issue.

usage: manage.py jira_status_reconciliation [-h] [--mode MODE] [--product PRODUCT] [--engagement ENGAGEMENT] [--dryrun] [--version] [-v {0,1,2,3}]

Reconcile finding status with JIRA issue status, stdout will contain semicolon seperated CSV results.
Risk Accepted findings are skipped. Findings created before 1.14.0 are skipped.

optional arguments:
  -h, --help            show this help message and exit
  --mode MODE           - reconcile: (default)reconcile any differences in status between Defect Dojo and JIRA, will look at the latest status change
                        timestamp in both systems to determine which one is the correct status
                        - push_status_to_jira: update JIRA status for all JIRA issues
                        connected to a Defect Dojo finding (will not push summary/description, only status)
                        - import_status_from_jira: update Defect Dojo
                        finding status from JIRA
  --product PRODUCT     Only process findings in this product (name)
  --engagement ENGAGEMENT
                        Only process findings in this product (name)
  --dryrun              Only print actions to be performed, but make no modifications.
  -v {0,1,2,3}, --verbosity {0,1,2,3}
                        Verbosity level; 0=minimal output, 1=normal output, 2=verbose output, 3=very verbose output

This can be executed from the uwsgi docker container using:

$ docker compose exec uwsgi /bin/bash -c 'python manage.py jira_status_reconciliation'

DEBUG output can be obtains via -v 3, but only after increasing the logging to DEBUG level in your settings.dist.py or local_settings.py file

$ docker compose exec uwsgi /bin/bash -c 'python manage.py jira_status_reconciliation -v 3'

At the end of the command a semicolon seperated CSV summary will be printed. This can be captured by redirecting stdout to a file:

$ docker compose exec uwsgi /bin/bash -c 'python manage.py jira_status_reconciliation > jira_reconciliation.csv'
