Managing Records

Note: Connectors are a DefectDojo Pro-only feature.

Once you have run your first Discover operation, you should see a list of Mapped or Unmapped records on the Manage Records and Operations page.

What’s a Record?#

A Record is a connection between a DefectDojo Product and a Vendor-Equivalent-Product. You can use your Records list to control the flow of data between your tool and DefectDojo.

Records are created and updated during the Discover operation, which DefectDojo runs daily to look for new Vendor-Equivalent Products.

Records have various attributes, including:

• The State of the Record
• The Product the Record imports data to
• When the Record was First and Last Discovered (by the Discover process)
• When the Record mapping was Finalized by a user
• A link to the DefectDojo Product

How Records are Mapped#

Each Record needs to have a Mapping assigned. The Mapping tells DefectDojo where to store the scan data from the tool. A Mapped Record assigns the Vendor-Equivalent Product to a DefectDojo Product, and tells the Connector to start importing scan data to that location (as Engagements and Tests).

You can assign Mappings yourself, or you can have DefectDojo assign them automatically.

Auto-Mapping#

If you have Auto-Mapping enabled, new Records will be Mapped to Products automatically. Each time DefectDojo Discovers a new Record, a matching DefectDojo Product will be automatically created for each Record**.** That Record will be stored under Mapped Records to indicate that it is ready to import data to DefectDojo.

If you don’t have Auto-Mapping enabled, you can make your own decisions about where you want data to flow. Each time the Connector finds a new Vendor-Equivalent Product (via Discover), it will add a new Record to your Unmapped Records list, and you can then manually assign that Record to a new or existing Product in DefectDojo.

Mapping - Example Workflow:#

David has just finished setting up a connector for his BurpSuite tool, and runs a Discover operation. David has Burp set up to scan 4 different ‘Sites’, and DefectDojo creates a new Record for each of those Sites.

• If David decides to use Auto-Mapping, DefectDojo will create a new Product for each Site. From now on, when DefectDojo runs a Synchronize operation, the Connector will import scan data directly from the Site into the Product (via the Record mapping)
  ​
• If David leaves Auto-Mapping off, DefectDojo will still discover those 4 Sites and create Records, but it won’t import any data until David creates the Mappings himself.
  ​
• David can always change how these mappings are set up later. Maybe he wants to consolidate the output of a few different Burp Sites into a single Product. Or maybe he’s looking to have a Product which records scan data from a few different tools - including Burp. It’s easy for David to change where Burp scan data is stored into DefectDojo by changing the Mapping of these Records.

How Records interact with Products#

Once a Record is Mapped, DefectDojo will be ready to import your tool’s scans through a Sync Operation. Connectors can work alongside other DefectDojo import processes or interactive testing.

• Record Mappings are designed to be non-invasive. If you map a Product to a Record which contains existing Engagements or Findings, those existing Engagements and Findings will not be affected or overwritten by the data sync process.
  ​

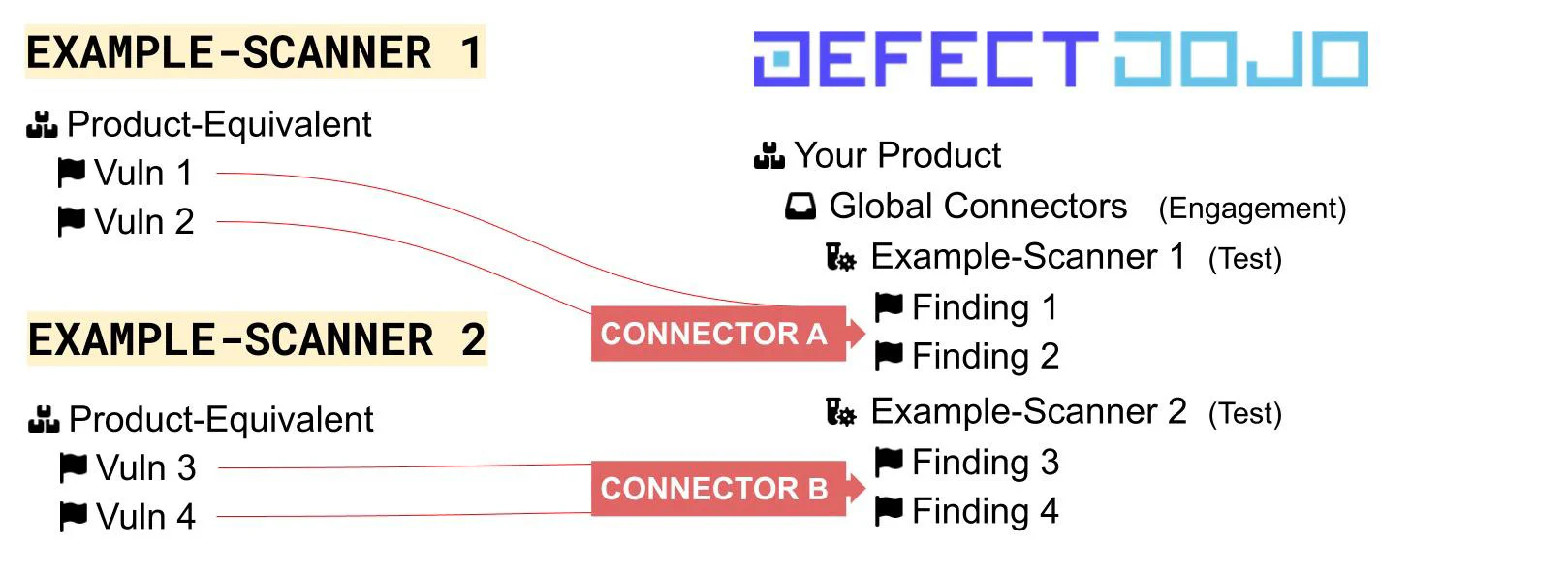

• All data created via a connector will be stored under a single Engagement called Global Connectors. That Engagement will create a separate Test for each Connector mapped to the Product.

This makes it possible to send scan data from multiple Connectors to the same Product. All of the data will be stored in the same Engagement, but each Connector will store data in a separate Test.

To learn more about Products, Engagements and Tests, see our Product Hierarchy Overview.

Record States - Glossary#

Each Record has an associated state to communicate how the Record is working.

New#

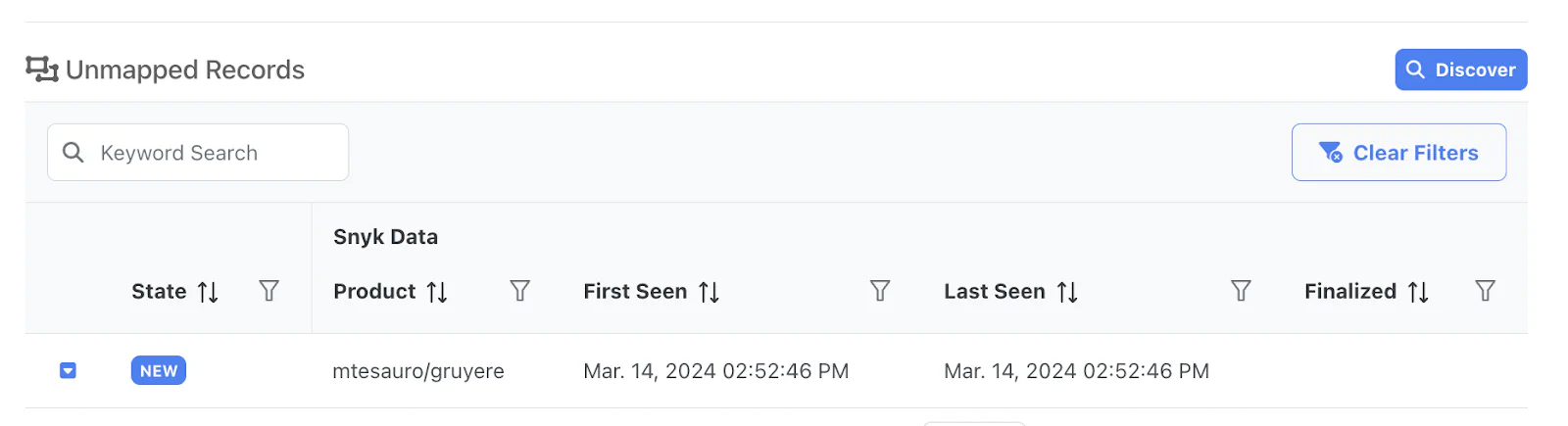

A New Record is an Unmapped Record which DefectDojo has Discovered. It can be Mapped to a Product or Ignored. To Map a new Record to a Product, see our guide on Editing Records.

Good#

‘Good’ indicates that a Record is Mapped and operating correctly. Future Discover Operations check to see if the underlying Vendor-Equivalent Product still exists, to ensure that the Sync operation will run correctly.

Ignored#

‘Ignored’ Records have been successfully Discovered, but a DefectDojo user has decided not to map the data to a Product.

Warning States: Stale or Missing#

If the connection between tool and DefectDojo changes, the state of a Record will change to let you know.

Stale#

A Mapping is moved to ‘Stale’ when a related Product, Engagement or Test has been deleted from DefectDojo. The mapping still exists, but there isn’t anywhere in DefectDojo for the Tool’s data to import to.

Stale records can be remapped to an existing Product, or Ignored if the scan data is no longer relevant.

Missing#

If a Record has been Mapped, but the source data (or Vendor-Equivalent Product) is not being detected by DefectDojo, the Record will be labeled as Missing.

DefectDojo Connectors will adapt to name changes, directory changes and other data shifts, so this is possibly because the related Vendor-Equivalent Product was deleted from the Tool you’re using.

If you intended to remove the Vendor Equivalent Product from your tool, you can Delete a Missing Record. If not, you’ll need to troubleshoot the problem within the Tool so that the source data can be Discovered correctly.

Edit Records: Remap, Ignore or Delete#

Records can be Edited, Ignored or Deleted from the Manage Records & Operations Page.

Although Mapped and Unmapped records are located in separate tables, they can both be edited in the same way.

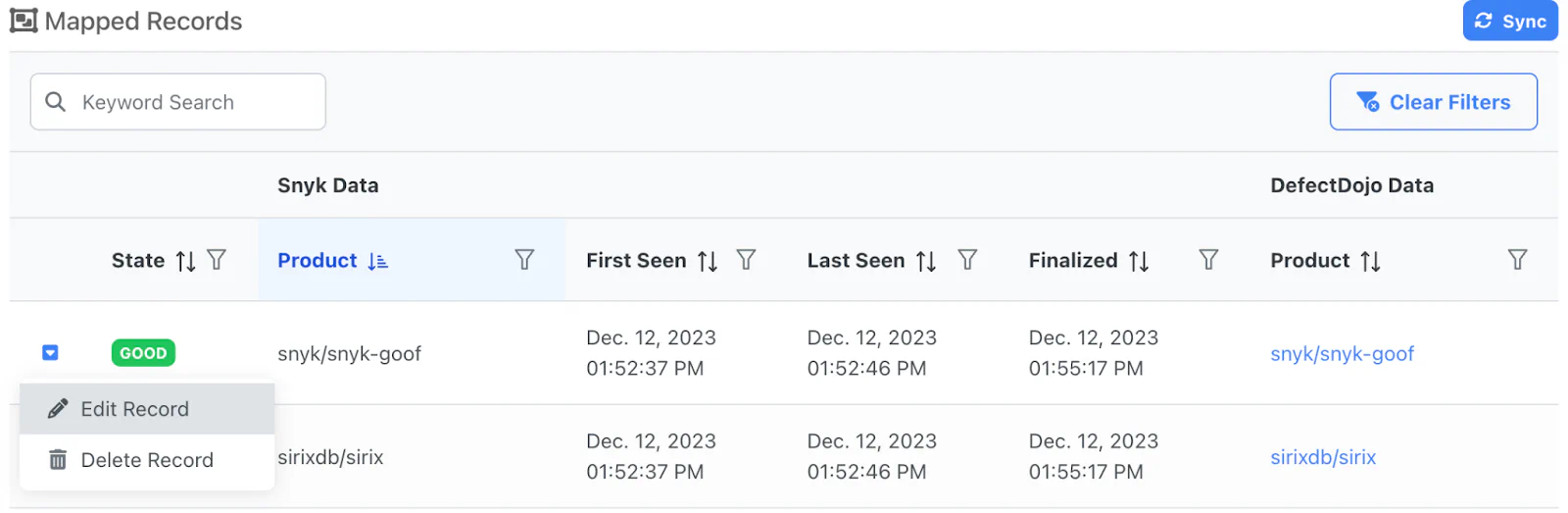

From the Records table, click the blue ▼ Arrow next to the State column on a given Record. From there, you can select Edit Record, or Delete Record.

Change the Mapping of a Record#

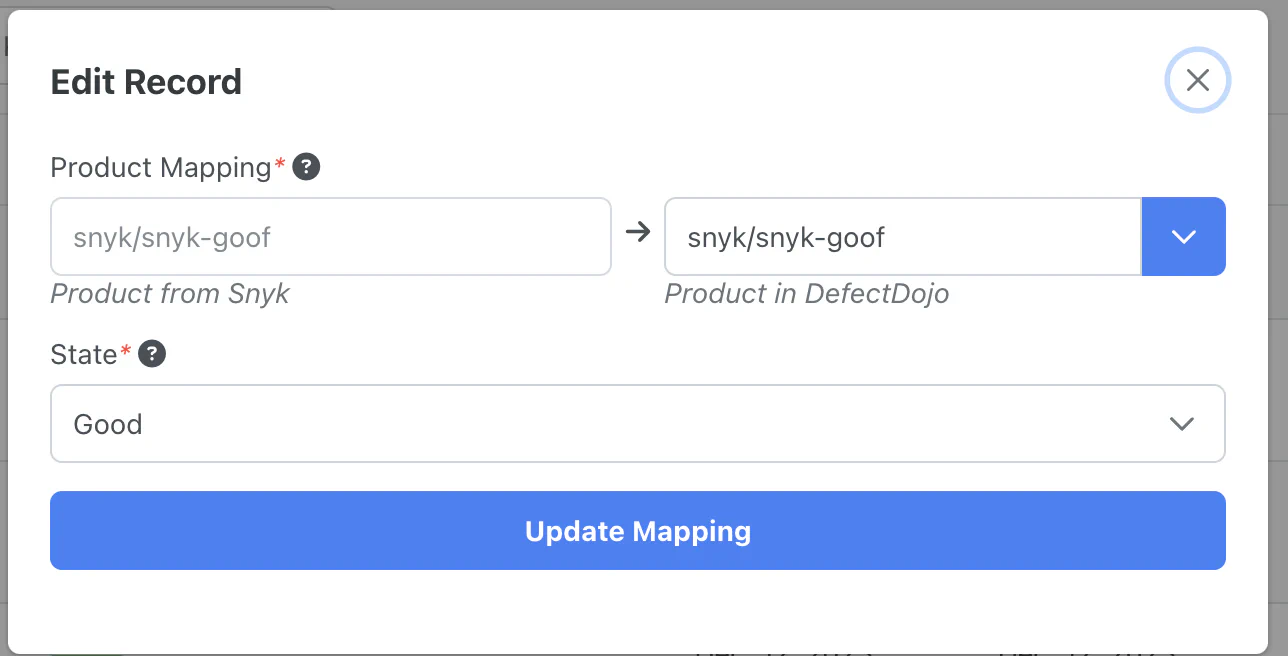

Clicking Edit Record will open a window which allows you to change the destination product in DefectDojo. You can either select an existing Product from the drop-down menu, or you can type in the name of a new Product you wish to create.

The scan data associated with a Record can be directed to flow into a different Product by changing the mapping.

Select, or type in the name of a new Product from the drop-down menu to the right.

Edit the State of a Record#

The State of a Record can be changed from this menu as well. Records can be switched from Good to Ignored (or vice versa) by choosing an option from the State dropdown list.

Ignoring a Record#

If you wish to ‘switch off’ one of the records or disregard the data it’s sending to DefectDojo, you can choose to ‘Ignore’ the record. An ‘Ignored’ record will move to the Unmapped Records list and will not push any new data to DefectDojo.

You can Ignore a Mapped Record (which will remove the mapping), or a New Record (from the unmapped Records list).

Restoring an Ignored Record#

If you would like to remove the Ignored status from a record, you can change it back to New with the same State dropdown menu.

• If Auto-Map Records is enabled, the Record will return to its original mapping once the Discover operation runs again.
• If Auto-Map Records is not enabled, DefectDojo will not automatically restore a previous mapping, so you’ll need to set up the mapping for this Record again.

Delete a Record#

You can also Delete Records, which will remove them from the Unmapped or Mapped Records table.

Keep in mind that the Discover function will always import all records from a tool - meaning that even if a Record is deleted from DefectDojo, it will become re-discovered later (and will return to the list of Records to be mapped again).

• If you plan on removing the underlying Vendor-Equivalent Product from your scan tool, then Deleting the Record is a good option. Otherwise, the next Discover operation will see that the associated data is missing, and this Record will change state to ‘Missing’.
  ​
• However, if the underlying Vendor-Equivalent Product still exists, it will be Discovered again on a future Discover operation. To prevent this behaviour, you can instead Ignore the Record.

Does this affect any imported data?#

No. All Findings, Tests and Engagements created by a sync record will remain in DefectDojo even after a Record is deleted. Deleting a record or a configuration will only remove the data-flow process, and won’t delete any vulnerability data from DefectDojo or your tool.
